Read the diagram, then check the score.

Four illustrative examples generated by the standalone Beautiflow binary. Compare a workflow, trace a retry, follow a cache miss, and explore a service boundary. Click any diagram for the full-size SVG.

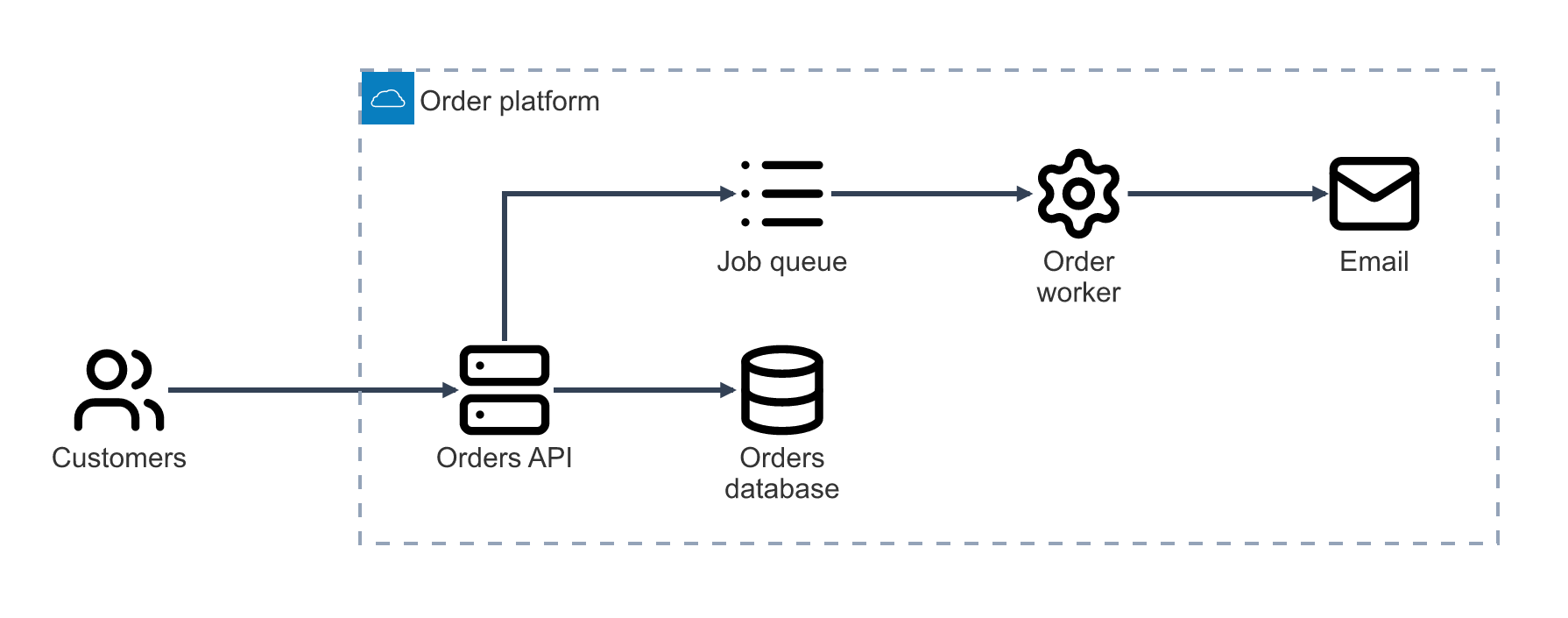

An order platform, at a glance

Customers call the Orders API, which stores orders and queues background work. A worker processes jobs and hands off notifications. The boundary separates customers from platform services.

Customers connect to an Orders API inside the order platform, with a database and a queue feeding a worker and notifications
Native Mermaid architecture-beta with Lucide icons and explicit ports. Architecture supports rendering and audit, not flowchart polish. The boundary is illustrative, not a verified security control.
Mermaid source · PNG

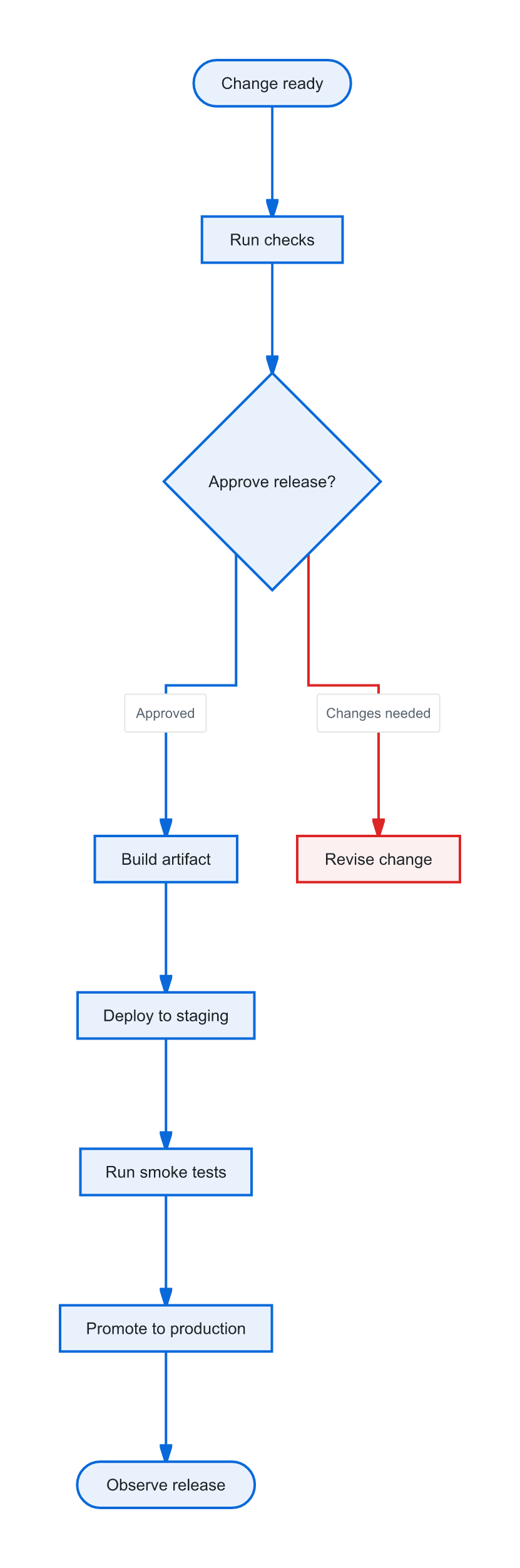

Release workflow

Follow approval into production. Blue emphasizes the primary path; the red revision branch stays visible without dominating it.

Geometry score: 79 → 94. Same nine nodes and eight relationships.

Show the untouched, extra-wide layout
Original left-to-right release workflow, stretched across eight main steps
Before: valid, but very wide. The same GitHub Light theme is used in both versions.
Top-to-bottom release workflow with an emphasized approval path and a separate revision branch
After: polish selects a vertical layout; one semantic correction adds emphasis. This suits a document better than a widescreen slide—it remains tall.
Mermaid source · PNG

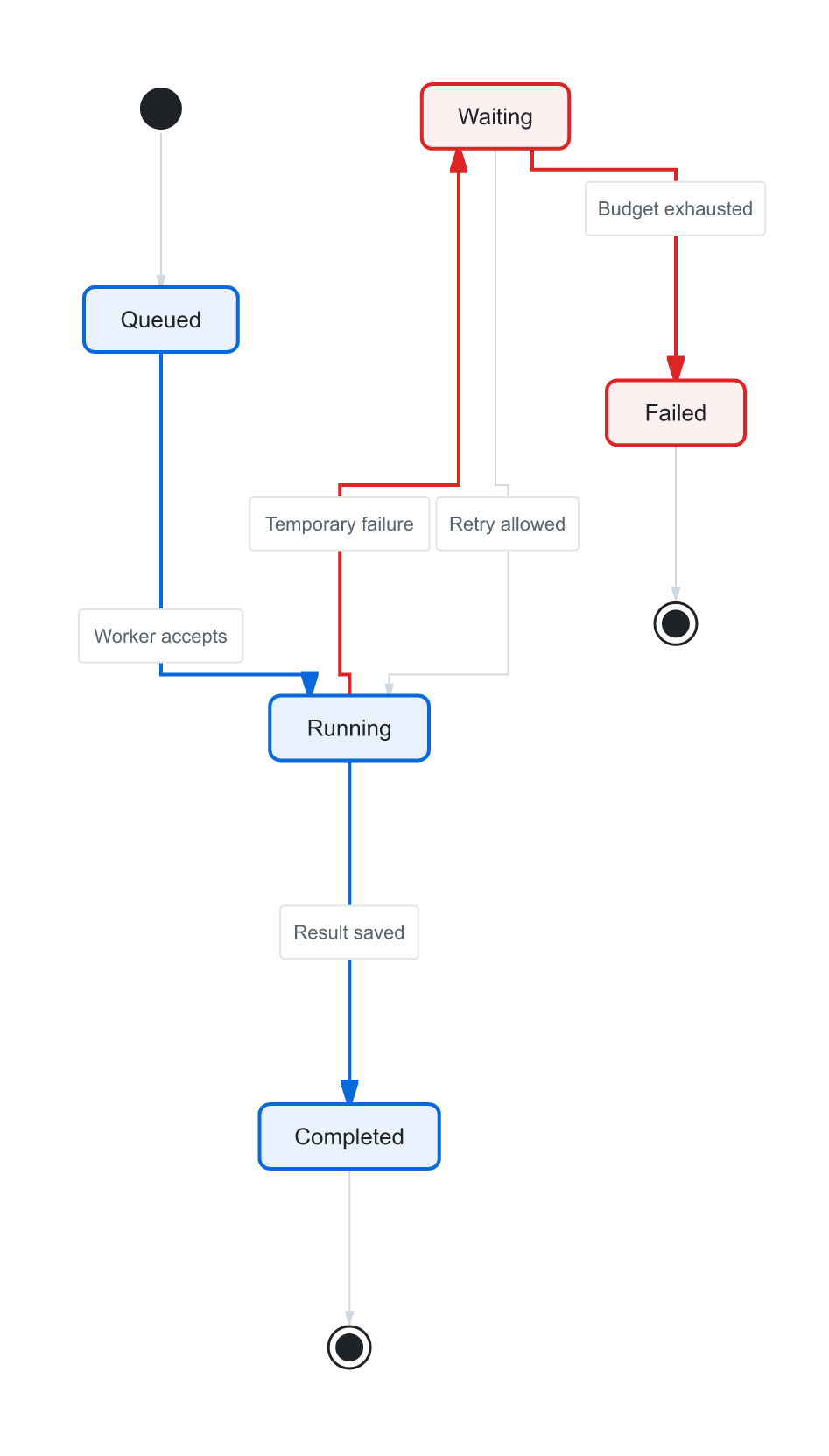

Job lifecycle

Trace Queued → Running → Completed, then follow Temporary failure into Waiting. Retry allowed must return to Running; Budget exhausted must terminate in Failed.

Geometry score: 97 → 97. A good layout need not move to improve emphasis.

Show the original without semantic emphasis
Original job lifecycle with equally weighted normal and retry paths
Job lifecycle distinguishing the primary completion path from waiting, retry, and failure
The retry cycle is intentional. Zero measured label collisions does not remove the need to read the arrows.
Mermaid source · PNG

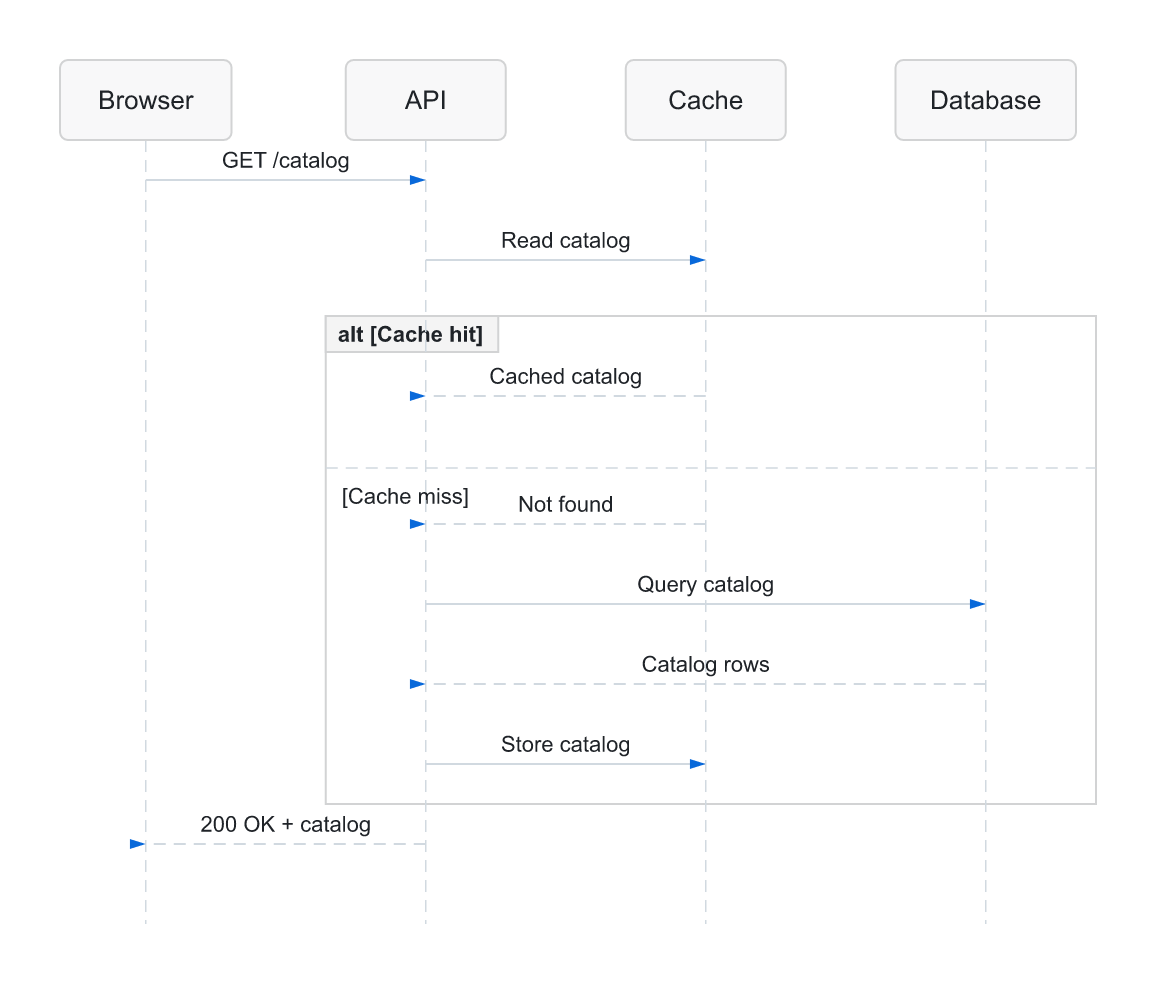

Cache hit or database fallback?

Use a sequence diagram when the question is about ordering, not placement. The database is queried only on a cache miss.

Browser API request with alternate cache-hit and database-fallback message sequences
Render-only family. Visually reviewed; no flowchart geometry score or polish claim.
Mermaid source · PNG

Test it yourself

At a comfortable reading size: trace every arrow, read every branch label, check that labels hide no unrelated route, and confirm that the primary path is obvious without relying on color alone.

./dist/beautiflow server examples/recipes/visual-quality/release.mmd
./dist/beautiflow audit examples/recipes/visual-quality/release.mmd --json

The server is read-only and reflects saved files. This gallery is static; regenerating an SVG requires refreshing the page. See the reproduction guide for exact commands and limitations.
